TURN ANY JAMMA CABINET INTO A MAME CAB!
THIS IS A 100% COMPLETE ASSEMBLED KIT

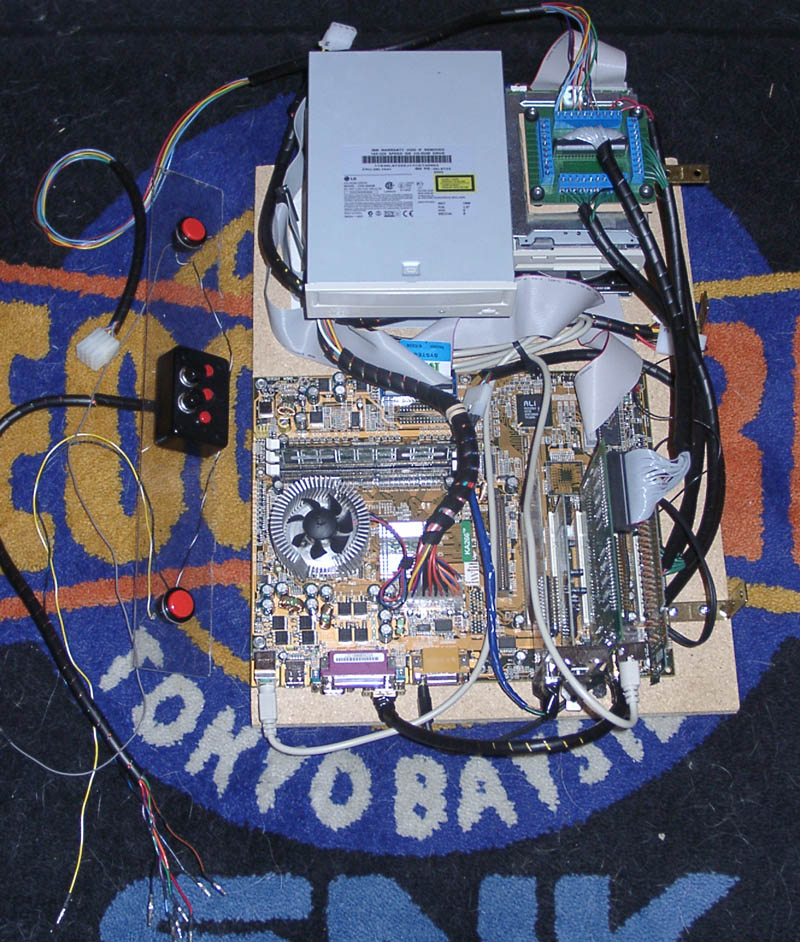

full pic of the unit

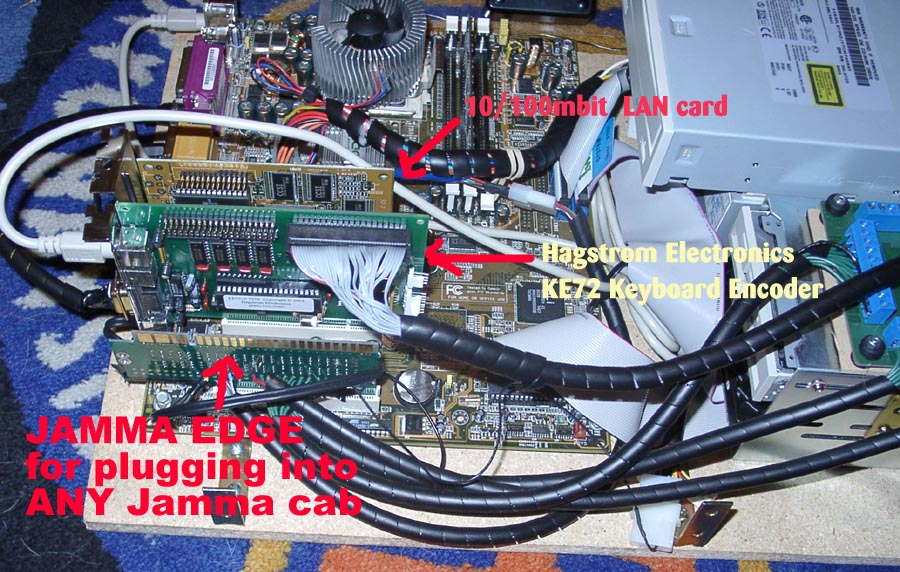

upclose on the custom wiring

detailed pic of the JAMMA edge

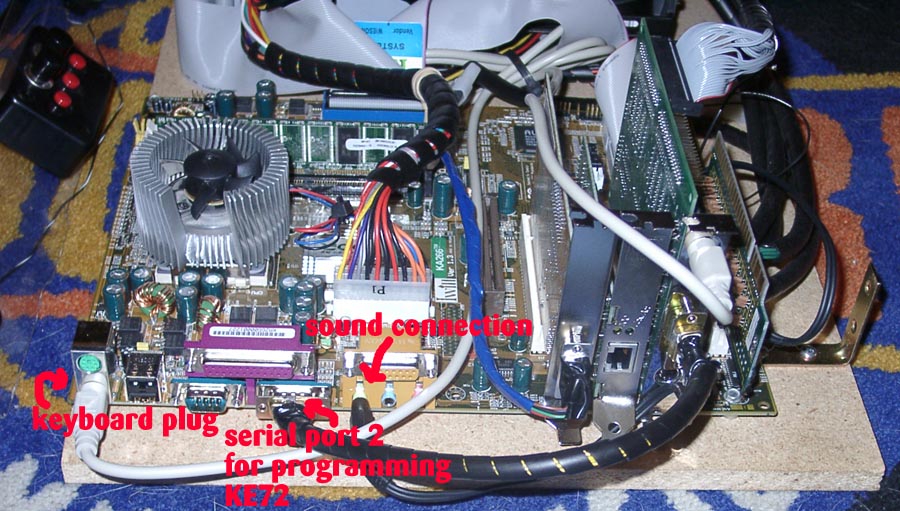

full frontal pic

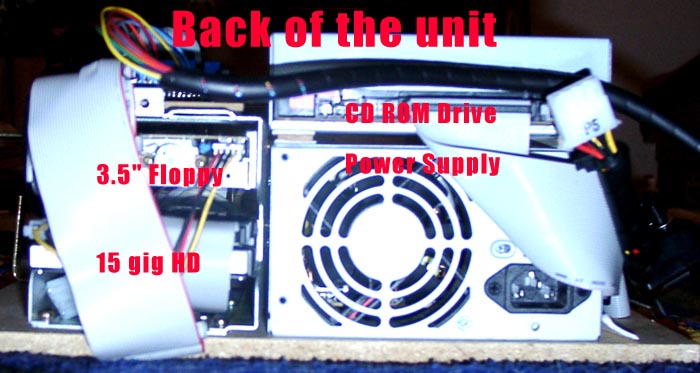

full back pic

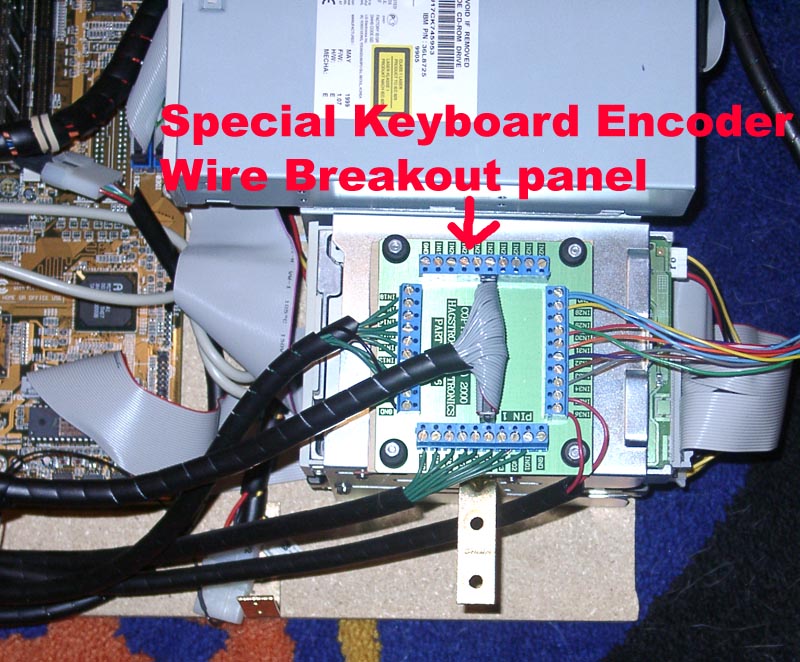

custom wiring buttons

If you have ever thought about getting into the MAME multicab thing,
this is your dream!  I have personally assembled this custom hand-built
computer SPECIFICALLY for running MAME in an arcade cabinet.

All you have to do is load the software, stick it in your JAMMA cab,
plug it in, and away you go!  I have done every bit of wiring necessary.
This is top of the line all the way, I have wrapped up all the cables,
soldered all the wires, and thought of everything.

Here are the stats on the computer:

IWILL KA-266 DDR motherboard running 800mhz Duron with supercooler(this
board can run up to a 1.2ghz athlon and be overclocked with ease)

128 meg DDR 2400 memory

15 gig IDE HDD

Onboard audio(SB compatible)

10/100 Lan card(for connecting to another PC if you have one, making loading new
software very easy)

SIS6326 Video card(supports ADVANCEMAME special video drivers)

HAGSTROM Electronics KE72 keyboard encoder with splitter harness(the
top of the line best keyboard encoder) + trackball to mouse encoder.

24x CD-ROM drive

3.5" floppy drive

As you can see, this is a 100% complete solution for your MAME cabinet.
If you have never wired up one of these you have no idea how much of a pain
it can be!

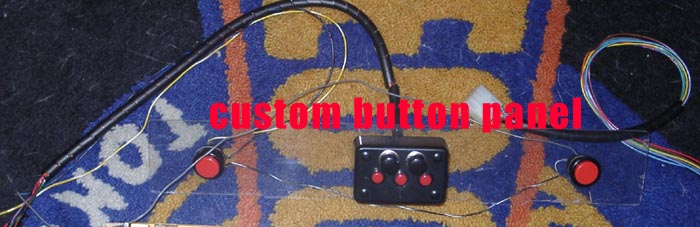

On top of the above, I have even included an extra custom button control panel
add-on that is already wired.  This item(shown in the last pic) is  for he extra
buttons in MAME for things like sound, video, exiting game, etc. You can
program the buttons for any function(including macro's).

Everything is mounted securely on a piece of 1/2" plywood with brackets for
vertical OR horizontal mounting.

If you have ANY questions, please email!
